Ask about HSM-1 Slim Medical Computer Cart for Clinics
Need Help?
Get the right model recommendation.
Send your quantity, use case and accessories needed. Rife will suggest the correct configuration.

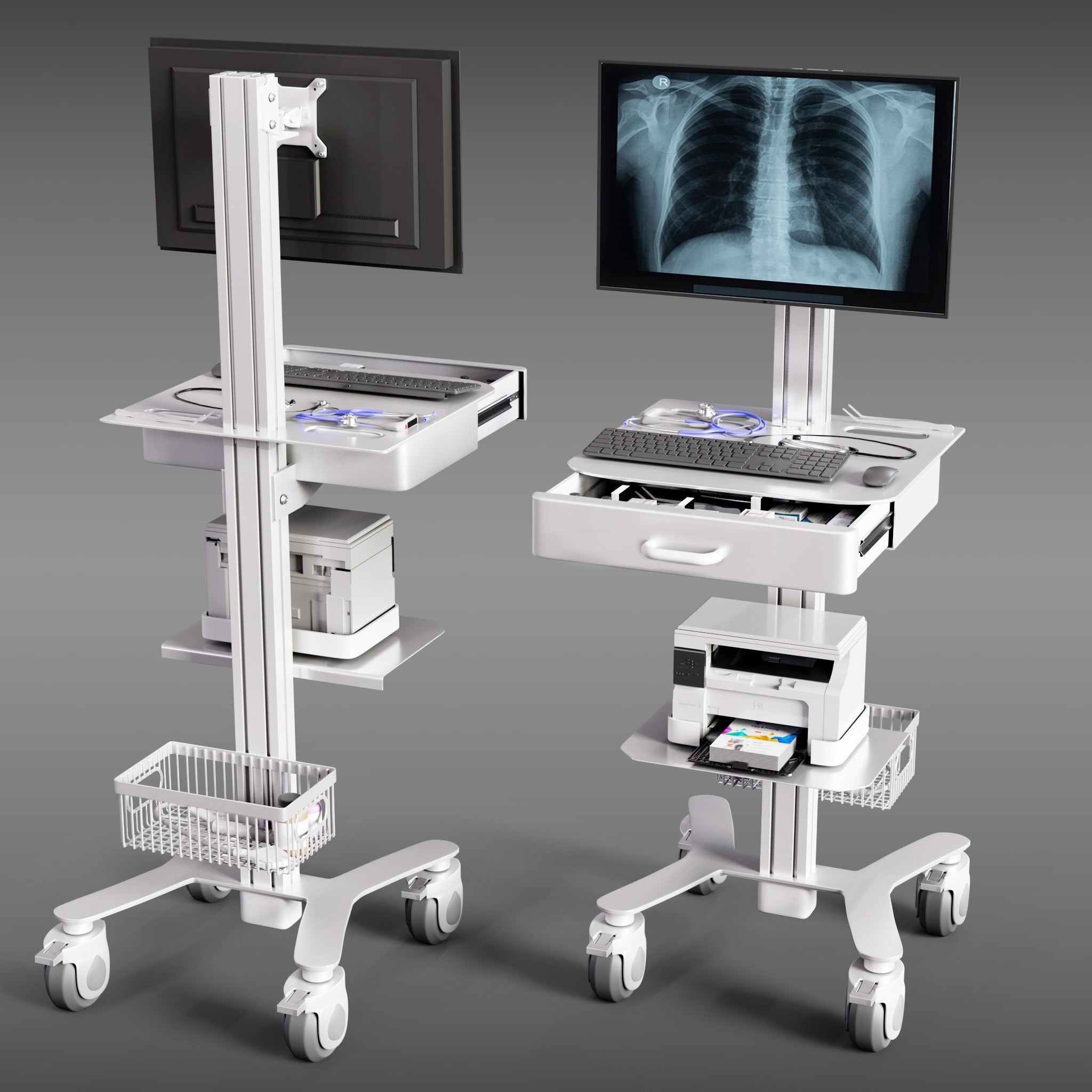

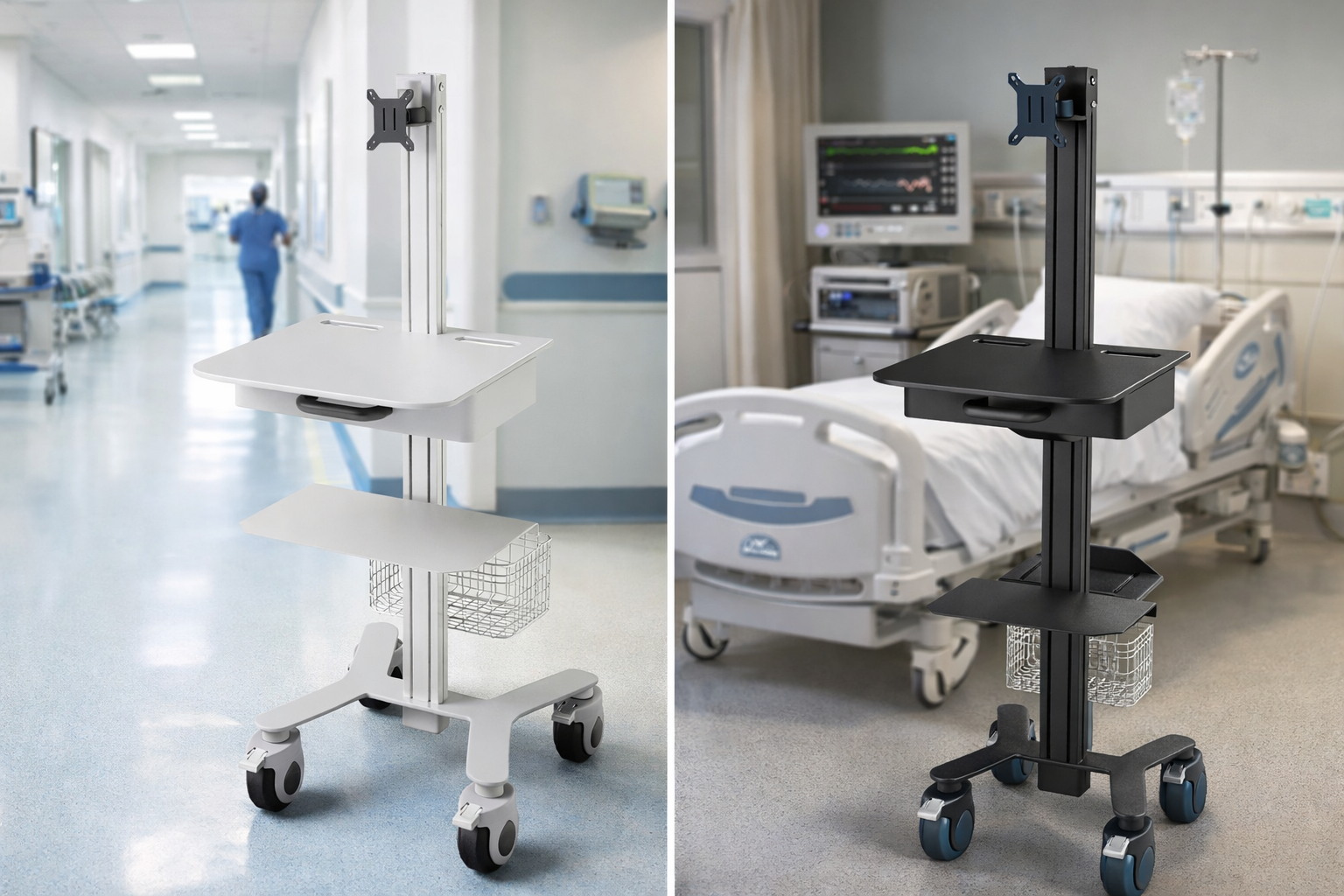

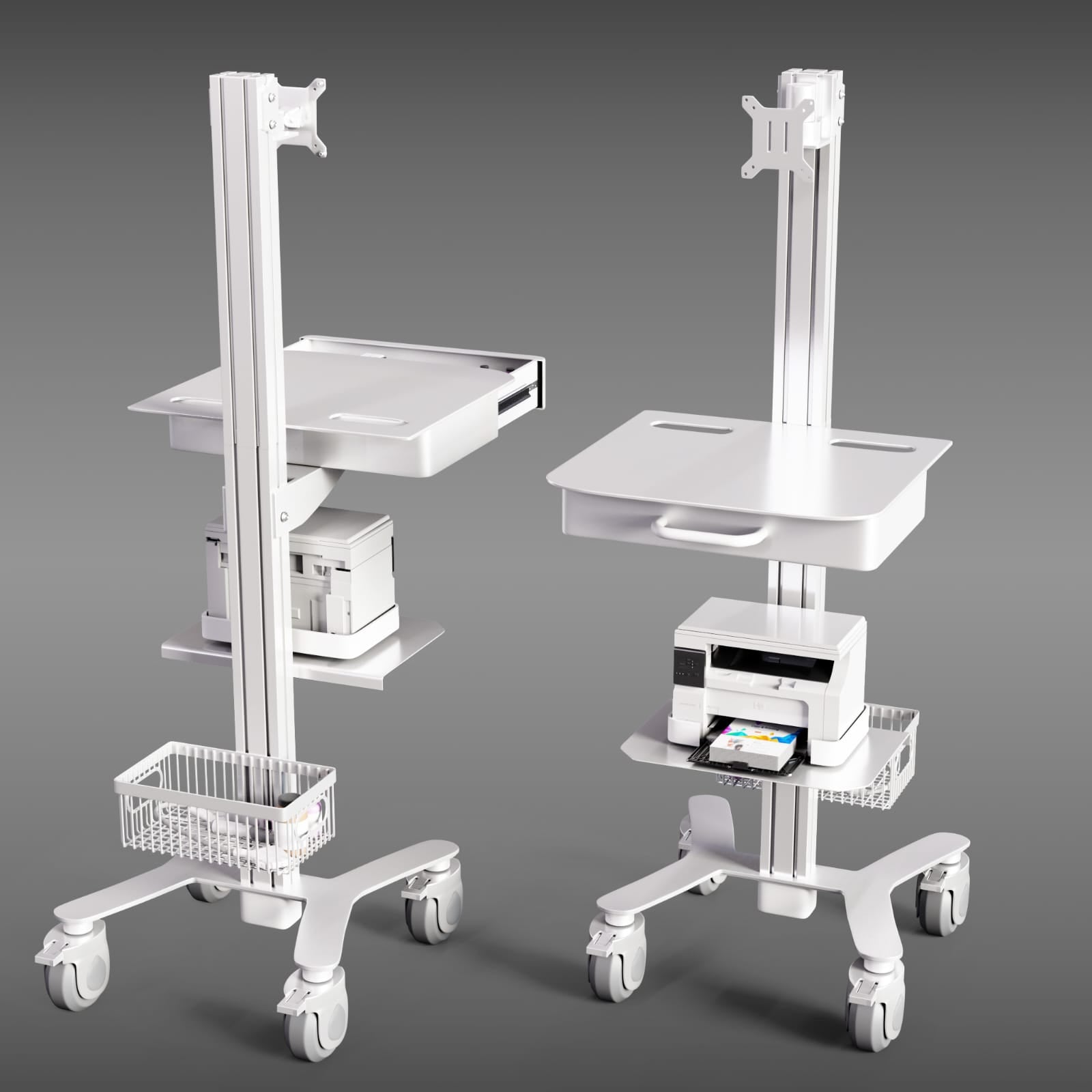

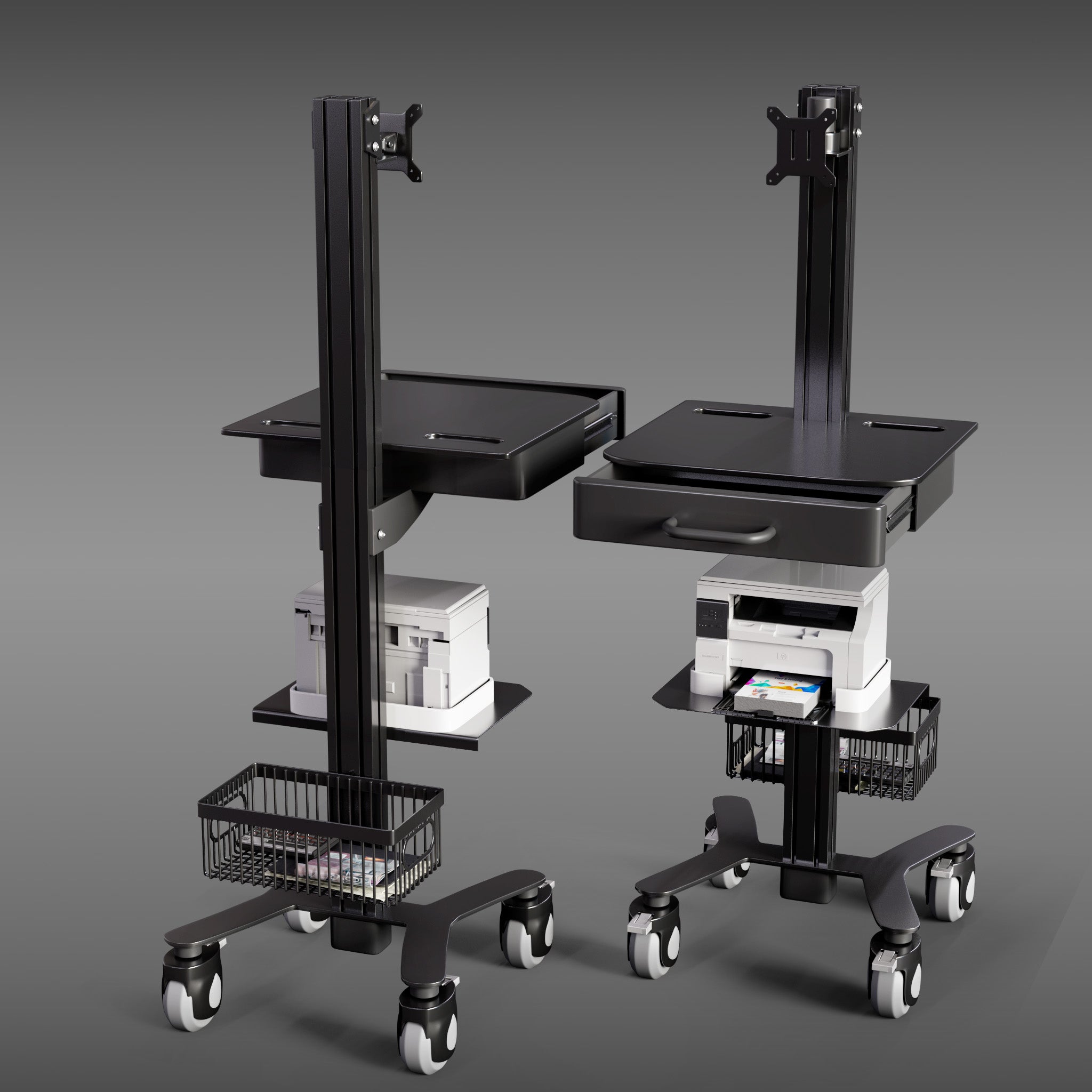

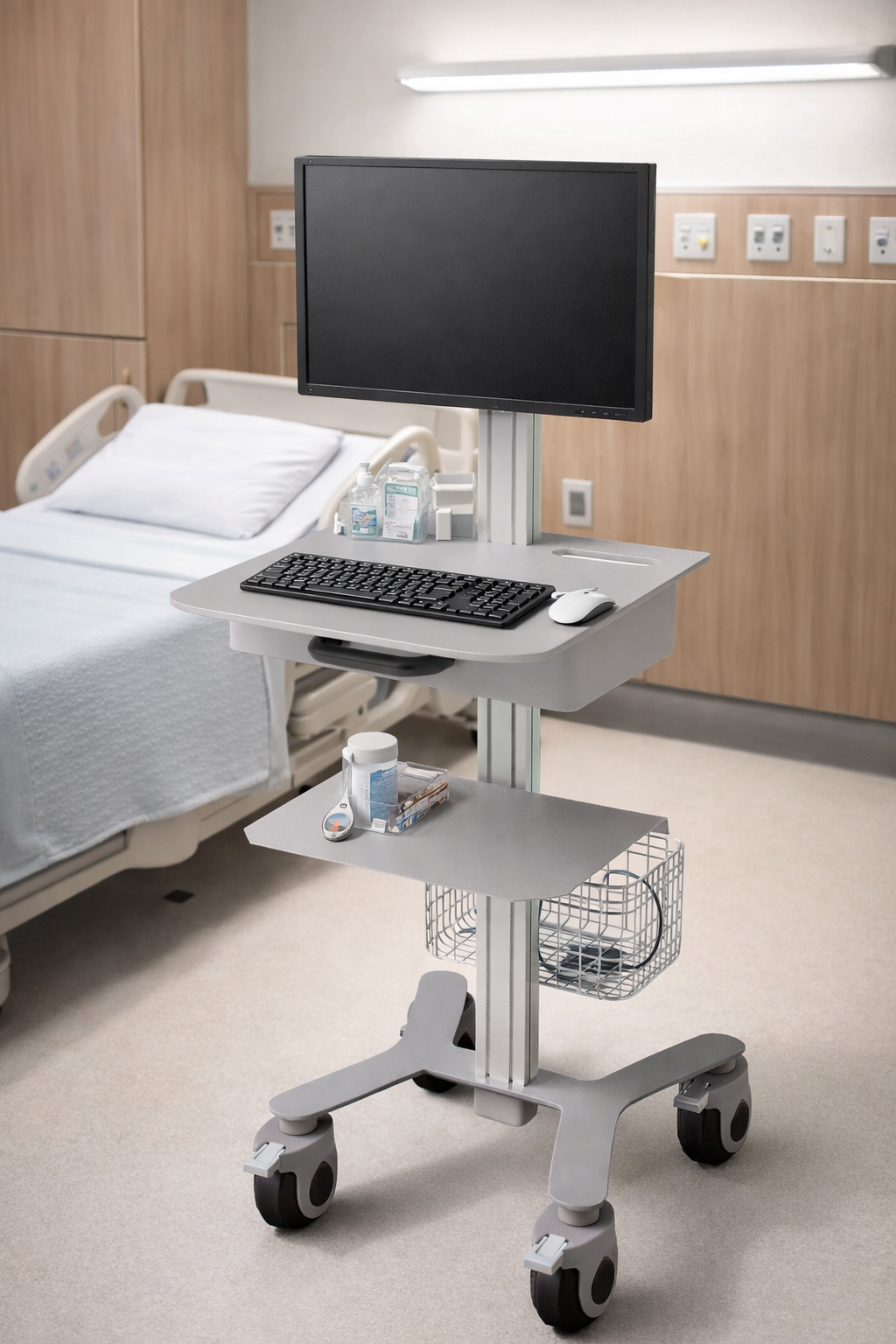

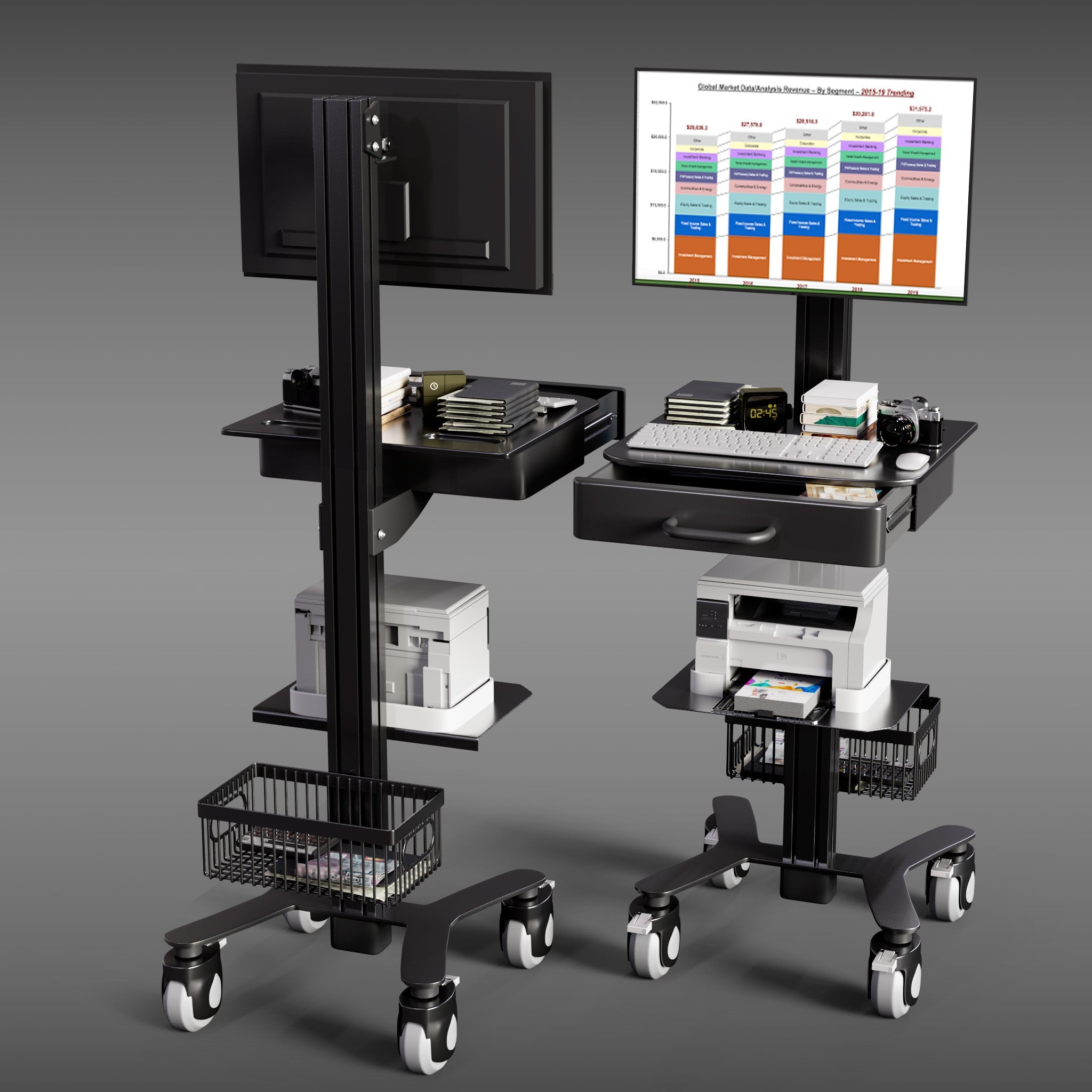

HSM-1 — The RIFE HSM-1 is a slim medical computer cart for clinics, consultation rooms and patient areas where a conventional workstation occupies too much space. It supports a monitor or computer setup, input devices and selected storage while maintaining a compact mobile footprint.
What Makes the HSM-1 Different?
The HSM-1 is the slim-profile model in the HSM medical workstation range. It is suited to clinical computing where mobility and ergonomics are required but a large cabinet or multiple drawers are unnecessary.
Designed Around the Working Workflow
The cart can support bedside charting, consultation-room computing, patient registration or clinical review. Its adjustable column allows the workstation to be positioned for different users, while the low-profile base and castors help it move through tighter spaces.
The medical environment, equipment list and cleaning protocol vary from project to project. The cart should therefore be selected as a configured workstation rather than assumed to be a universal off-the-shelf frame.
Key Features
- Slim clinical workstation footprint
- Height-adjustable aluminium column
- VESA-compatible monitor mounting
- Open bucket and shelf storage options
- Internal cable routing
- Anti-tip base and total-lock castor options
- Custom work-surface and colour choices
Technical Specifications and Configuration Range
The following details are retained from the existing product specification and presented as configuration ranges. They must be verified against the final equipment list and quotation before ordering.
| Height adjustment | Manual, gas-spring-assisted or electric actuator options, depending on approved configuration |
|---|---|
| Indicative height range | Approximately 750–1200 mm in the existing product specification; final range to be confirmed |
| Column construction | Extruded aluminium telescopic column with powder-coated or anodised finish options |
| Indicative column load | Approximately 25–40 kg depending on lift mechanism, equipment layout and centre of gravity |
| Base | Reinforced mild-steel, low-profile anti-tip base with powder-coated finish |
| Castors | Four swivel castors with total-lock options; 75 mm or 100 mm wheel options referenced in the existing specification |
| Worksurface options | Approximately 600 × 450 mm or 700 × 500 mm, with custom sizes subject to project review |
| Indicative worksurface load | Approximately 20–30 kg, subject to equipment distribution and approved configuration |
| Display compatibility | VESA 75 × 75 mm and 100 × 100 mm options |
| Indicative monitor range | 17–32 inches, subject to monitor weight, arm selection and stability review |
| Cable management | Internal or integrated routing provisions for power and data cables |
| Finish | Industrial powder coating with black, white or project-specific RAL colour options |
Ergonomics, Stability and Mobility
The workstation should place the display, laptop or input devices at a comfortable working height while maintaining a stable centre of gravity. Height adjustment is useful for shared workstations, but the selected lift mechanism must be matched to the total load. Castor diameter and material should reflect the flooring, thresholds and travel distance. Locking castors secure the cart during data entry or equipment use, while the low-profile base helps the cart approach beds, desks or work counters.
Device Integration and Cable Management
Before production, RIFE should receive the device model, display size, VESA pattern, computer or CPU dimensions, charger details, cable connections and required accessories. This information is used to review mounting, ventilation, cable slack, power distribution and access. A neat cable path is particularly important on an adjustable cart because cables must remain protected through the complete height and movement range.
Applications
- Compact clinics and consultation rooms
- Bedside documentation
- Outpatient departments
- Patient registration
- Diagnostic and telemedicine support
The listed applications are examples. Final suitability depends on equipment weight, infection-control or cleaning requirements, electrical requirements and the operating process at the installation site.
How to Specify the Correct Cart
- List every device and accessory that will be carried.
- Provide dimensions, weight, VESA pattern and cable connections.
- Confirm the required sitting and standing work heights.
- Describe the route, floor type, thresholds and lift access.
- Identify storage, locking, scanner, printer or power requirements.
- Confirm the quantity, delivery city and required project schedule.
Related Mobile Workstations
Request a Techno-Commercial Quotation
Request a quotation for the HSM-1. Share the intended application, equipment list, quantity, installation city and required accessories. RIFE can then review the cart as a complete workstation and recommend the appropriate height adjustment, mounting, storage, castors, cable management and power configuration.
Frequently Asked Questions
What makes HSM-1 suitable for clinics?
Its slim footprint helps position clinical computing in smaller rooms while retaining height adjustment and monitor support.
Can it support a 32-inch monitor?
The existing specification references 17–32 inch displays, but the exact monitor weight, VESA pattern and arm extension must be reviewed.
What storage is available?
Open bucket and shelf options are referenced for quick-access accessories. Other storage can be discussed.
Are the dimensions fixed?
The existing specification lists common work-surface and height ranges, but final dimensions depend on the approved configuration.
