- Product Name: LORI Orthopedics Traction Be (Two Functions Manual)
- Model Number: RMC-SY171B1G1
- Dimensions: L2250xW1065xH500mm
- Material: Cold Rolled Steel, HDPE, Aluminum Alloy
- Traction Shelf: 2023*793*1503mm
- Traction Shelf Height: 1780-2020mm
Product Material
- Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating.
- The bed platform consist of four foldable sections, stamping frame.
- Detachable ‘smile face’ HDPE bed headboard and footboard.
- Four-section ‘smile face’ HDPE side rails operated by gas spring.
- Orthopedics traction shelf is made of molding aluminum alloy.
Product Parameters
- Bed Platform: 1980x900mm
- Backrest: 0-75°±5°
- Legrest: 0-45°±5
- Brakes System: Wheels brake
- Sticker Color: Wood Grain/ Royal Blue
- Side Rails: ABS Side Rails
- Orthopedics Traction Shelf: Aluminum Alloy 2023*793*1503mm
Product Feature
- Backrest adjustment 0-75°±5°; Legrest adjustment 0-45°±5°.
- Angel indicator on backrest side rails.
- Clear acrylic head card for patient name display, four infusion holes, four drainage hooks around the bed.
- Mechanical crank operation with overload protection.
- The screw handle is foldable under the bed footboard.
- Orthopedics traction shelf is made of molding aluminum alloy 2023*793*1503mm.
- Four 125mm diameter castors with wheels brake.
Frequently Asked Questions
What functions does the LORI RMC-SY171B1G1 manual orthopedic traction bed provide for patient recovery?
The LORI RMC-SY171B1G1 manual orthopedic traction bed is designed with two primary manual functions to assist in patient positioning and orthopedic care. It allows for a backrest adjustment ranging from 0 to 75 degrees and a legrest adjustment from 0 to 45 degrees, both featuring a margin of error of plus or minus 5 degrees. These adjustments are facilitated by a mechanical crank system that includes integrated overload protection to ensure the longevity of the hardware while providing precise control for caregivers.
What are the material specifications of the LORI manual orthopedic traction bed?
The construction of the LORI manual orthopedic traction bed utilizes high-quality industrial materials to ensure durability and hygiene in a clinical environment. The bed platform, structure, and legs are manufactured from premium cold rolled steel finished with an electrostatic powder coating for corrosion resistance. Additionally, the unit features a detachable HDPE "smile face" headboard and footboard, while the specialized orthopedic traction shelf is crafted from molding aluminum alloy for a balance of strength and lightweight performance.
What are the dimensions and height ranges for the LORI RMC-SY171B1G1 orthopedic traction shelf?
The orthopedic traction shelf included with the LORI RMC-SY171B1G1 model is engineered to accommodate various traction requirements with a footprint of 2023mm by 793mm and a frame height of 1503mm. To ensure versatility for different patient needs and ceiling heights, the traction shelf height is adjustable, ranging from 1780mm to 2020mm. This ensures that the aluminum alloy structure provides stable support while fitting within the overall external bed dimensions of 2250mm in length and 1065mm in width.
How do the safety features on the LORI orthopedic bed protect patients during use?
Safety is a primary focus of the LORI orthopedic traction bed, which incorporates four-section HDPE "smile face" side rails operated by a smooth gas spring mechanism. These side rails include built-in angle indicators to help medical staff monitor the exact incline of the backrest for clinical accuracy. Furthermore, the bed is equipped with four 125mm diameter castors featuring a dedicated wheel brake system to prevent unintended movement, alongside four drainage hooks and four infusion holes to manage medical tubing safely.
How is the manual crank system operated on the LORI RMC-SY171B1G1 orthopedic bed?
The manual operation of the LORI RMC-SY171B1G1 orthopedic bed is handled through a mechanical crank system designed for ease of use and space efficiency. The screw handles used to adjust the bed sections are located at the foot of the bed and are designed to be foldable, allowing them to be tucked neatly under the bed footboard when not in use to prevent tripping hazards. This system is reinforced with overload protection, which prevents mechanical failure or stripping of the gears if the bed reaches its maximum adjustment limit.
Product Introduction

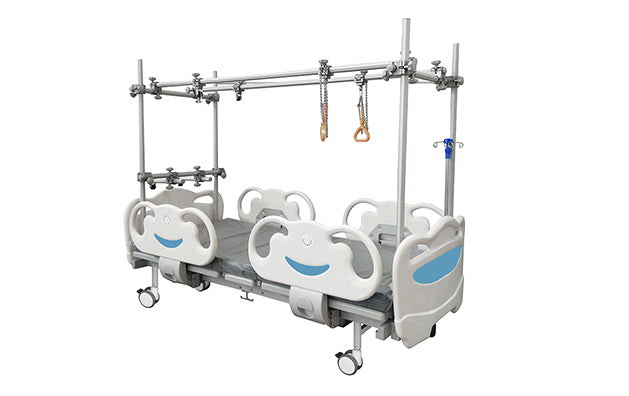

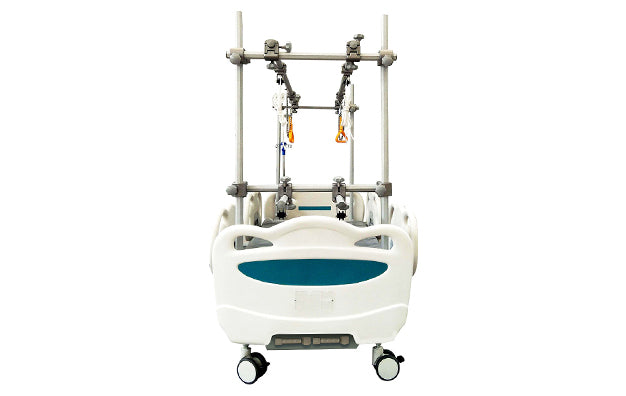

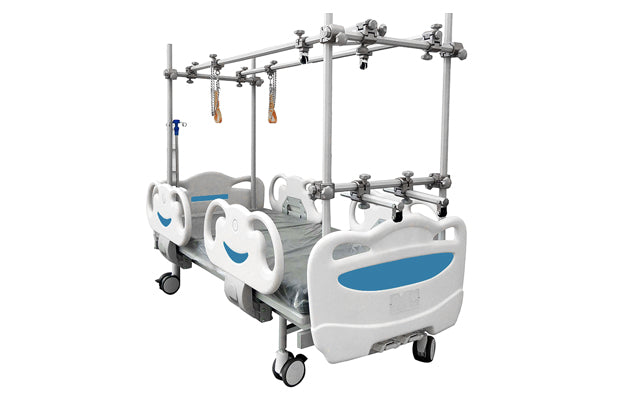

Product Display

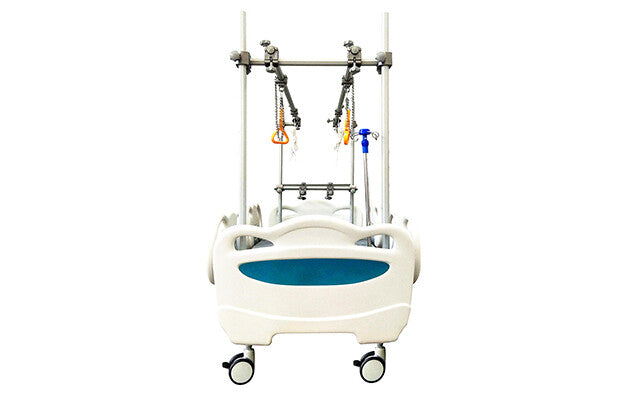

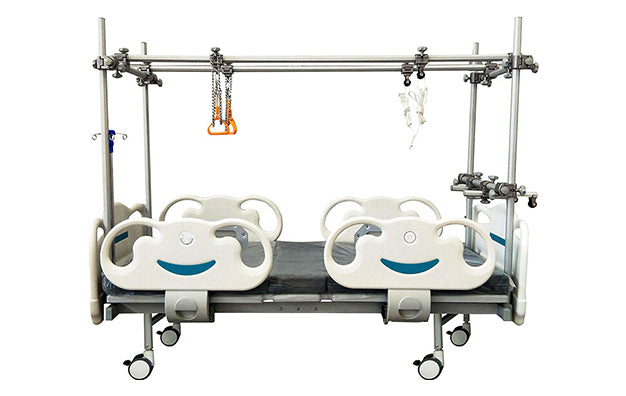

Product Detail Display
