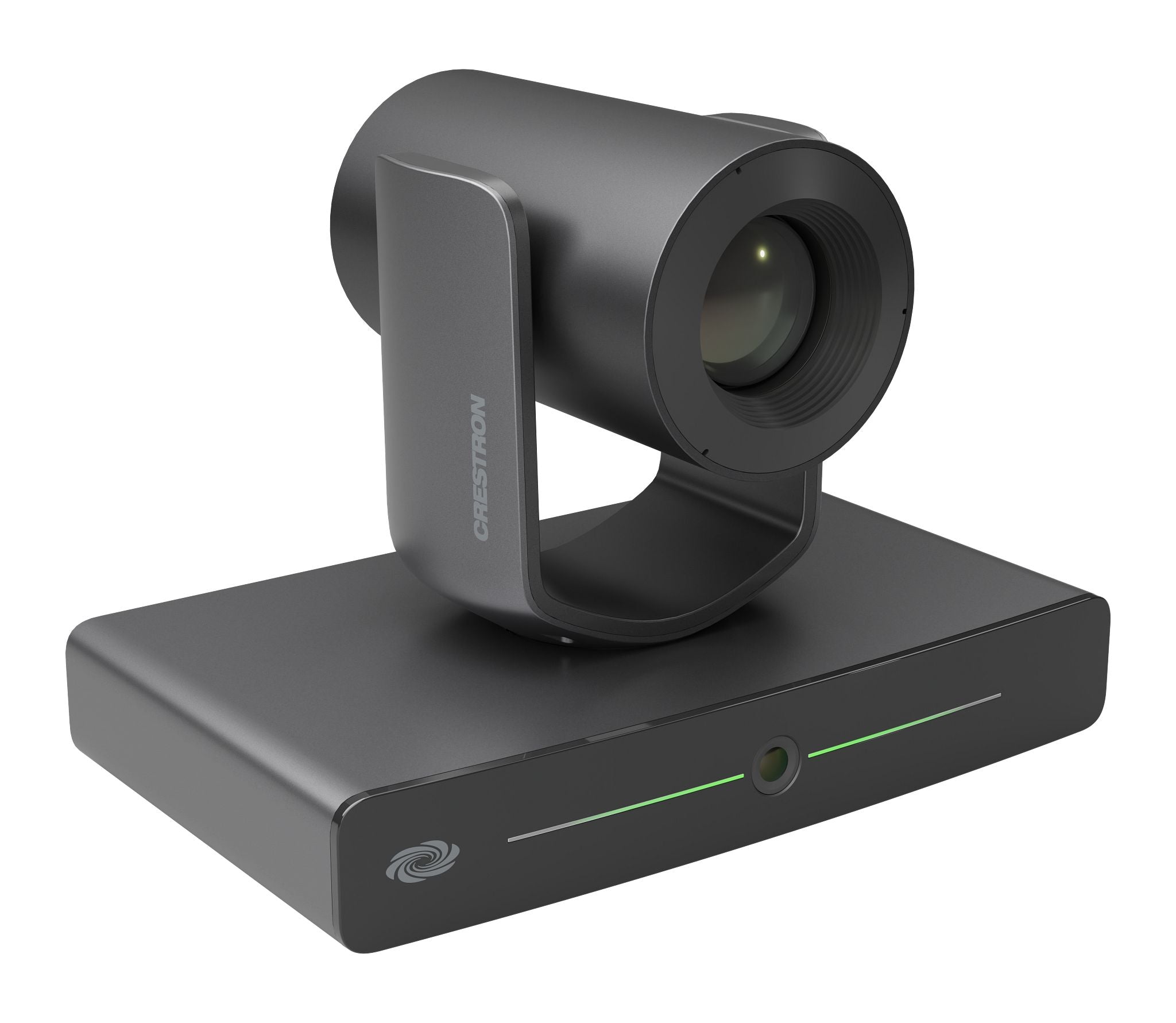

Ask about Crestron 1 Beyond i20 Intelligent PTZ Camera, 20x Optical Zoom, Moon Gray, (R-IV-CAM-I20-B)
Product SKU: R-IV-CAM-I20-B
The IV-CAM-I20 is a high quality intelligent PTZ camera that uses visual AI to automatically track or frame a presenter. The IV‑CAM‑I20 is ideal for presenter tracking in large to extra large sized training rooms and classrooms, and group tracking meeting participants in large to extra large conference rooms. The IV‑CAM‑I20 has a dual camera design; the wide‑angle reference camera uses visual AI to direct the PTZ camera. All visual AI is built into the camera – no external system is needed.
Presenter Tracking Capability
Visual AI is used to smoothly track a single moving presenter as they move through a designated presentation area. It is easily configurable to prevent tracking other subjects or displays by using Blocking Zones. Recommended tracking range is 15 to 50 ft from the presentation area.
Group Tracking Technology
Group Tracking utilizes visual AI to track multiple presenters smoothly in large training rooms and classrooms. The wide-angle reference camera continuously detects when participants enter or leave the presentation area, and the PTZ camera pans, tilts, and zooms to keep all presenters in the frame.
Preset Zones
Preset Zones utilizes visual AI to frame a dedicated area of the room. When a participant enters the Preset Zone, the camera automatically displays the area regardless of who is currently talking or where other participants may be.
Automate VX Compatible
The IV‑CAM‑I20 camera is compatible with Automate VX multi-camera speaker tracking systems. Use the IV‑CAM‑I20 for presenter tracking in a designated area within 50 ft.
High Quality Video
A high quality Sony® CMOS sensor enables the camera to output up to 1080p60 resolution video.
Networked Power, Viewing, and Control
Connect a single Ethernet cable to power (PoE), view, set up, and control the IV‑CAM‑I20 camera.
Mounting Options
Standard mounting holes make it easy to mount the camera. The IV‑CAM‑I20 ships with the color matched IVA‑WMT‑BRKT‑1B Wall Mount Bracket, and is compatible with the Universal Mounting Bracket and the J‑Mount Ceiling Bracket.
Key Features
- Visual AI for Presenter Tracking
- High quality video supporting resolutions up to 1080p60
- Automatically pans, tilts, and zooms with dual camera technology, no external computer required
- Supports 20x optical zoom for tracking distances up to 50 ft from participants
- Connects directly to a codec or recording/streaming device
- Single Ethernet connection provides power (PoE), viewing, control, and NDI®|HX video
- Easily configured with Crestron 1 Beyond Camera Manager software
- Compatible with Automate VX multi-camera systems
- Available in Moon Gray
Specifications
| Optics | |
| Image Sensor: | 1/2.8 Sony® CMOS Sensor |
| Optical Zoom: | 20x |
| Focal Length: | F=5.2-94 mm |
| Field of View (PTZ): | Horizontal: 56.45° |
| Field of View (Reference): | Horizontal: 104° (changes based on camera mode) |
| Shutter Speed: | 1/50-1/10,000 sec |
| Iris: | F1.5-F3.0 |
| Minimum Illumination: | 2 lux |
| Pan/Tilt Angle: | Pan: -130° — 130°, Tilt: -30° — 90° |
| Pan/Tilt Speed: | Pan: 0.2° — 90°/s, Tilt: 0.2° — 70°/s |
| White Balance: | Auto, Indoor, One Push, Manual |
| Exposure: | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Camera Processing | |
| Intelligent Video Functions: | Presenter Tracking, Group Tracking, Preset Zones |
| Recommended Range: | 15-50 ft |
| Presets: | Up to 256 configurable presets |
| Video | |
| Video Outputs: | 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, UVC |
| Signal Formats: | SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50 USB: 1080p30/25, 720p30/25, 360p30 |
| Communications | |
| USB: | USB-B 3.0 |
| Ethernet: | RJ-45, 100Mbps |
| Serial: | RS-232, RS-485 |
| Control Protocol: | VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF |

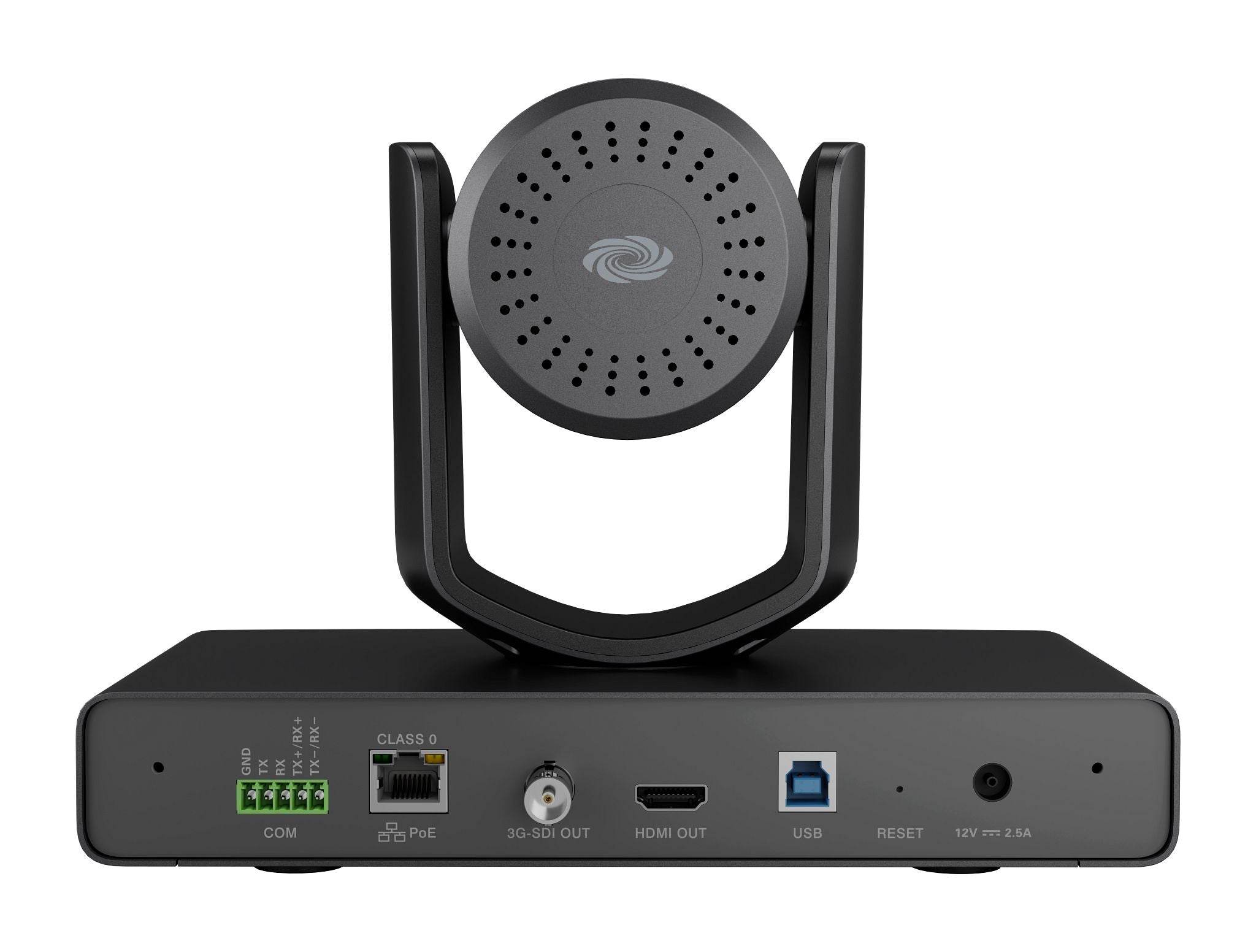

| COM: | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232/485 port |
| PoE: | (1) 8-pin RJ-45 connector, female |
| 3G-SDI OUT: | (1) BNC connector, female; 3G-SDI digital video output |
| HDMI OUT: | (1) HDMI Type A connector; HDMI digital video output |
| USB: | (1) USB Type B connector, female; USB 3.0 device port for video and control |
| 12VDC 2.5A: | (1) 3.3 mm DC power connector; 12VDC power input; PW-1225DU power pack sold separately |
| Controls and Indicators | |

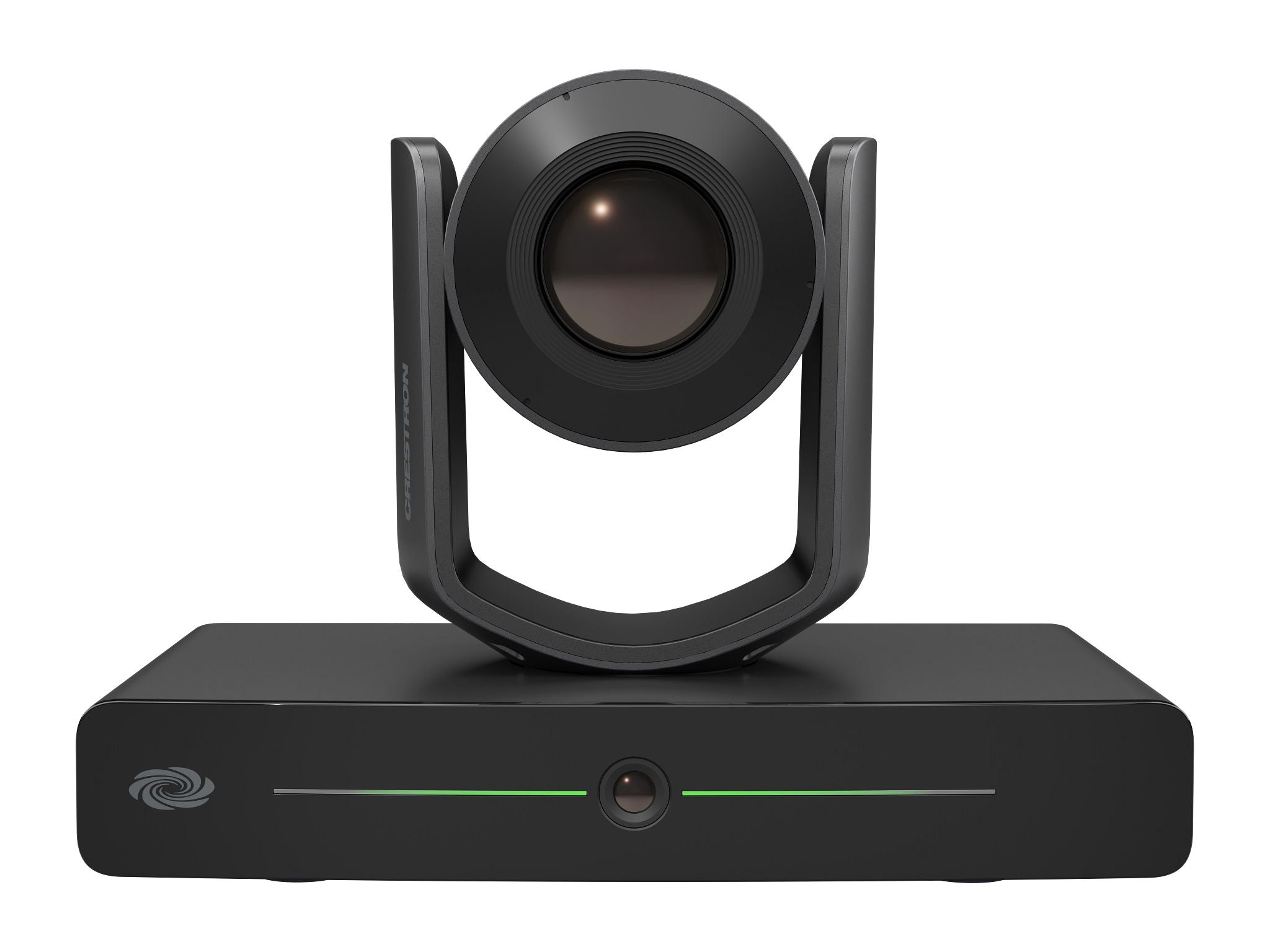

| Status Bar: | (1) Multisegment tricolor LED bargraph; Half green LED bargraph indicates live camera feed; Full green LED bargraph indicates camera tracking; Full amber LED bargraph indicates firmware upgrade; Half red LED bargraph indicates Privacy Mode |
| RESET: | (1) Recessed push button for hardware reset |
| Power | |
| Power Source Options: | Ethernet (PoE), Power Pack |
| Power over Ethernet: | IEEE 802.3af Class 3 Powered Device |
| Power over Ethernet Rating: | 15.4 W NOTE: To comply with the European Directive (CE), shielded CAT5e cable must be used as a minimum for PoE power. |
| Power Pack (sold separately): | 12VDC, 2.5A, 50/60 Hz |
| Environmental | |
| Temperature: | 32° to 104°F (0° to 40°C) |
| Humidity: | 10% to 90% RH (noncondensing) |
| Construction | |
| Mounting Options: | 1 Beyond Wall Mount Bracket (included), 1 Beyond J‑Mount Bracket (optional), 1 Beyond Universal Mounting Bracket (optional) |
| Mounting Thread: | 1/4 in. threaded mount hole |
| Dimensions & Weight | |
| Height: | 6.51 in. (165 mm) |
| Width: | 8.90 in. (226 mm) |
| Depth: | 5.86 in. (149 mm) |
| Weight: | 4.11 lb (1.86 kg) |
Frequently Asked Questions
1. How does the Crestron IV-CAM-I20 use Visual AI for presenter tracking?
The Crestron IV-CAM-I20 utilizes a dual-camera design to provide seamless presenter tracking. A wide-angle reference camera uses built-in Visual AI to monitor the room and detect movement, while the PTZ (Pan-Tilt-Zoom) camera automatically follows the subject. This built-in intelligence allows for smooth tracking and framing without the need for an external computer or manual operation.
2. What is the recommended tracking distance for the IV-CAM-I20 PTZ camera?
For optimal performance, the recommended tracking range for the IV-CAM-I20 is 15 to 50 feet from the presentation area. With its 20x optical zoom and high-quality Sony® CMOS sensor, the camera is specifically designed for large to extra-large environments, such as lecture halls, corporate training rooms, and spacious conference centers.
3. Does the IV-CAM-I20 require an external system for AI group tracking?
No, the IV-CAM-I20 is a standalone intelligent solution. All Visual AI processing is built directly into the camera hardware. It can independently manage Group Tracking—automatically adjusting the PTZ lens to frame multiple participants as they enter or leave the zone—and Preset Zones, which trigger specific views based on participant location.
4. Can the IV-CAM-I20 be powered and controlled via a single cable?
Yes, the IV-CAM-I20 supports PoE (Power over Ethernet), allowing for a simplified installation. A single Ethernet cable provides power, camera control, setup capabilities, and NDI®|HX video output. This makes it an ideal choice for networked AV environments where reducing cable clutter is a priority.
5. Is the IV-CAM-I20 compatible with Automate VX multi-camera systems?
The IV-CAM-I20 is fully compatible with Crestron Automate VX multi-camera speaker tracking systems. When integrated, it can serve as a dedicated presenter tracking camera within a larger multi-camera ecosystem, providing high-definition 1080p60 video for professional-grade live streaming and recording in high-impact spaces.
