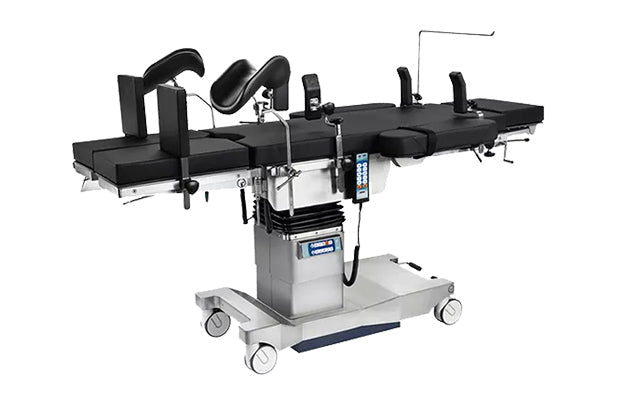

- Product Name: Operation Table
- Model Number: RMCJF112B
- Dimensions: L2100*W550*H700-1000mm
- Material: Stainless Steel
Product Features
Engineered for increasingly complex surgical scenes, it comes with intelligent automatic control system satisfying various demands of general surgeries. Longitudinal slide up to 350mm for free access to C-arm. Extreme weight load capacity of 250kg with highest safety and stability . Memory pad with antistatic, waterproof design . Standard override panel control makes the control safer .
- Lenth/Width:2100mm/550mm
- Elevation(up/down):700mm/1000mm
- Trendelenburg:≥25°
- Reverse Trendelenburg:≥25°
- Lateral Tilt(left/right):15°/15°
- Head Rest(up/down):45°/90°
- Footplate(up/down&horizontal positioning): 90°90°15°
- Back plate(up/down):85°/20° 9. Kidney bridge:110mm 10. Sliding:350mm
- Power:220v,50Hz,1.0kW
Other Details
- 1 Anaesthetic Screen
- 2 Shoulder Rest
- 2 Arm Support
- 2 Waist Suppport
- 2 Knee Crutch
- 2 Foot Plate
- 2 Long Slider
- 1PCS in a Box
- Meas:1360×860×880mm
- G/N.W:300/250KG
Frequently Asked Questions
1. What is the maximum weight capacity of the RMCJF112B Operation Table?
The RMCJF112B Operation Table is designed for high-stability and heavy-duty use, featuring an extreme weight load capacity of 250kg (550 lbs). This ensures maximum safety and performance during complex surgical procedures, accommodating a wide range of patient profiles while maintaining structural integrity.
2. Is the RMCJF112B Operation Table compatible with C-arm imaging?
Yes, the RMCJF112B is specifically engineered for radiotranslucent access. It features a longitudinal slide of up to 350mm, which allows for free access and clear imaging with a C-arm without having to reposition the patient. This makes it an ideal choice for cardiovascular, orthopedic, and neurosurgery scenes.
3. What are the adjustable positioning ranges for this surgical table?
The RMCJF112B offers versatile positioning to satisfy various general surgery demands, including:
Trendelenburg / Reverse Trendelenburg: ≥25°
- Lateral Tilt (Left/Right): 15°/15°
- Elevation (Height): Adjustable from 700mm to 1000mm
- Back Plate: +85° to -20°
- Kidney Bridge: 110mm elevation
This flexibility ensures optimal ergonomic access for the surgical team.
4. What safety and comfort features are included with the RMCJF112B model?
Safety is prioritized through an intelligent automatic control system and a standard override panel, which provides a manual backup for the electronic controls. For patient comfort and hygiene, the table includes a memory foam pad featuring an antistatic and waterproof design, reducing the risk of pressure sores and facilitating easy sterilization.
5. What accessories are included in the standard RMCJF112B package?
Every RMCJF112B Operation Table comes as a complete surgical solution. The standard package includes:
- 1 Anaesthetic Screen
- 2 Shoulder Rests, 2 Arm Supports, and 2 Waist Supports
- 2 Knee Crutches and 2 Foot Plates
- 2 Long Sliders
The unit is shipped in a single box (Dimensions: 1360×860×880mm) with a gross weight of 300kg, ensuring all necessary components for general surgery are ready upon installation.
