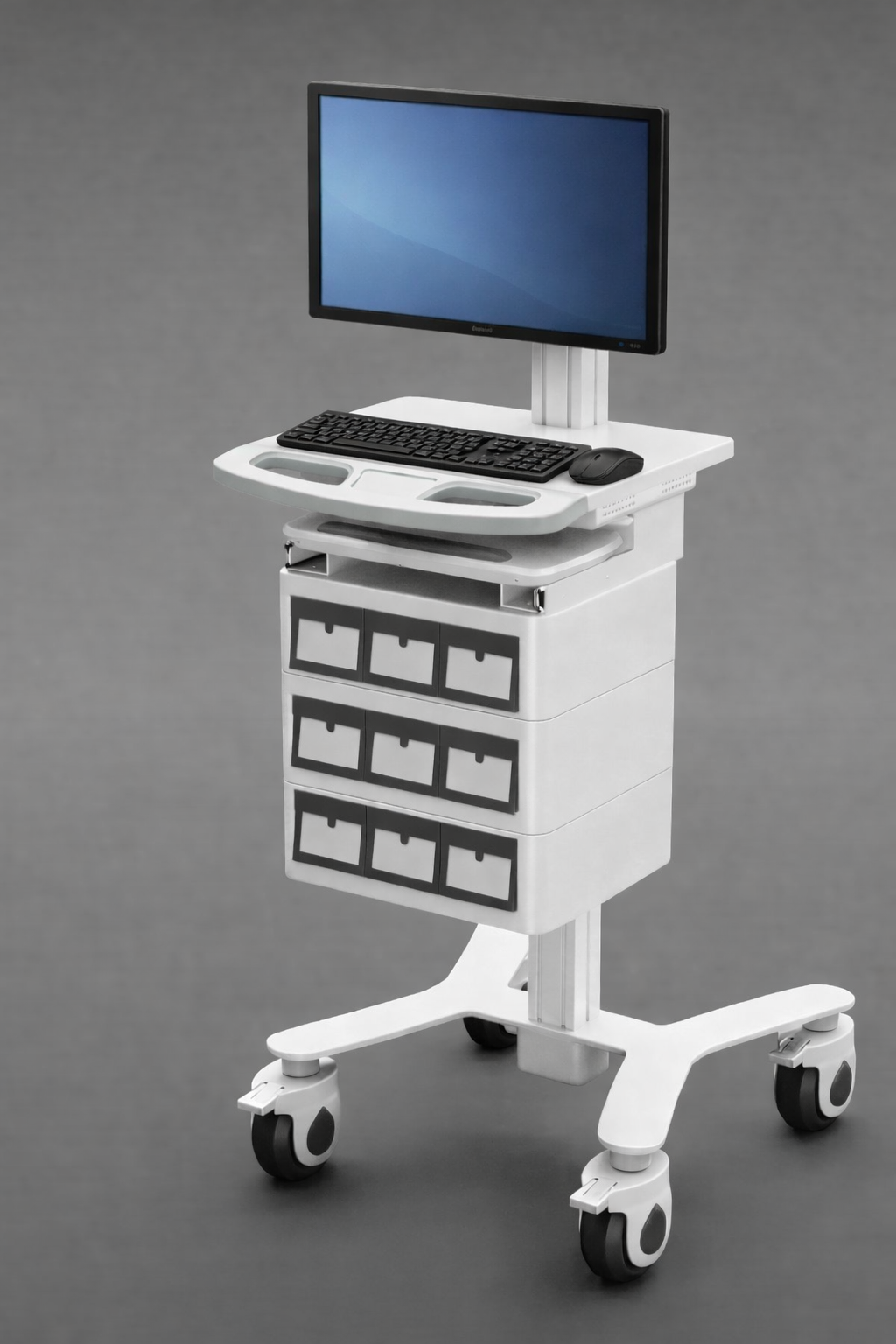

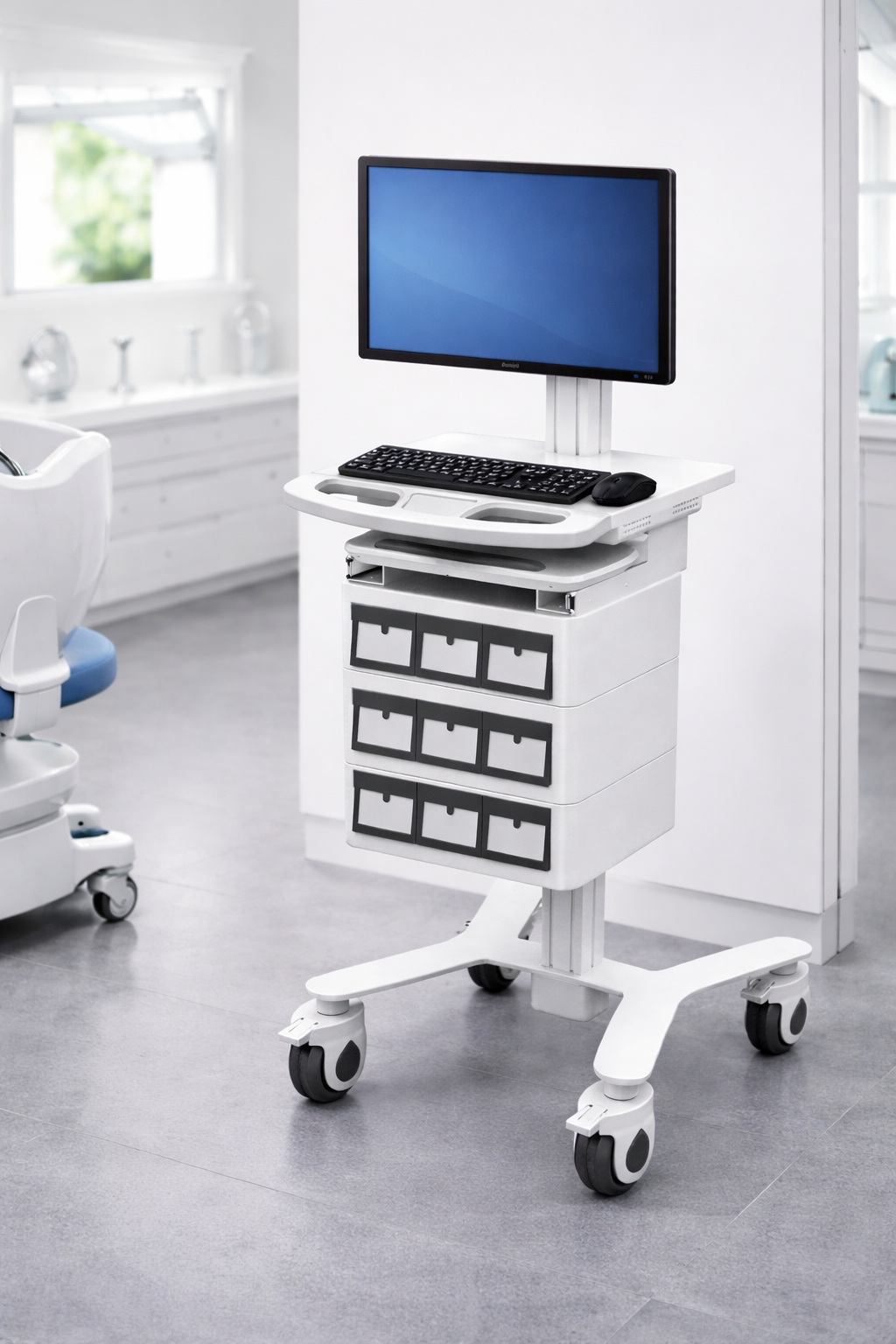

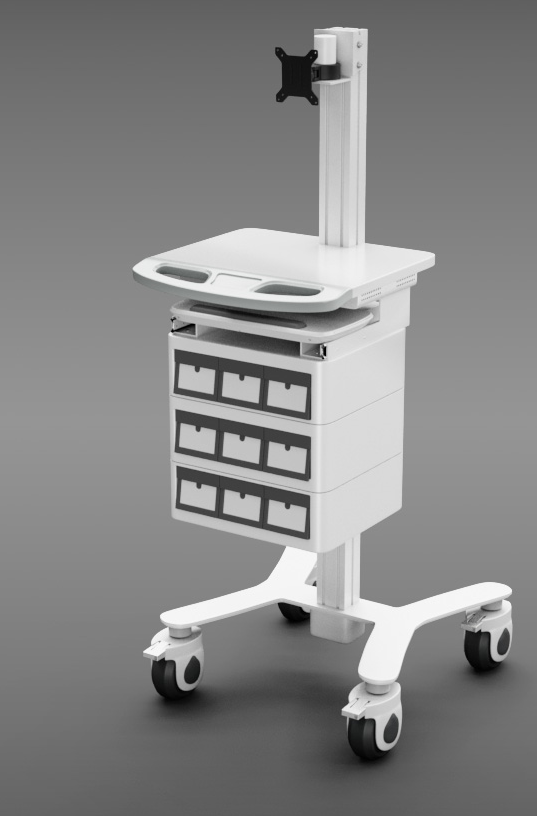

HSM-11 — The RIFE HSM-11 is a medical workstation on wheels with a configurable multi-drawer cabinet. It combines monitor and computer support with more organised storage than the open-shelf or single-drawer models in the HSM range.
What Makes the HSM-11 Different?
The multi-drawer module is the defining feature. It allows supplies, documents, tools or IT accessories to be separated into dedicated storage zones while the upper workstation supports digital tasks.
Designed Around the Working Workflow
HSM-11 suits departments where staff need both computer access and a structured set of items to move together. Drawer quantity, internal organisation, locking, work height and equipment placement should be selected around the operational process.
The medical environment, equipment list and cleaning protocol vary from project to project. The cart should therefore be selected as a configured workstation rather than assumed to be a universal off-the-shelf frame.
Key Features
- Medical workstation-on-wheels format
- Height-adjustable aluminium column
- VESA monitor mounting
- Configurable multi-drawer cabinet
- Internal cable routing
- Low-profile anti-tip base
- Total-lock castors and custom finish options
Technical Specifications and Configuration Range
The following details are retained from the existing product specification and presented as configuration ranges. They must be verified against the final equipment list and quotation before ordering.
| Height adjustment | Manual, gas-spring-assisted or electric actuator options, depending on approved configuration |
|---|---|
| Indicative height range | Approximately 750–1200 mm in the existing product specification; final range to be confirmed |
| Column construction | Extruded aluminium telescopic column with powder-coated or anodised finish options |
| Indicative column load | Approximately 25–40 kg depending on lift mechanism, equipment layout and centre of gravity |
| Base | Reinforced mild-steel, low-profile anti-tip base with powder-coated finish |
| Castors | Four swivel castors with total-lock options; 75 mm or 100 mm wheel options referenced in the existing specification |
| Worksurface options | Approximately 600 × 450 mm or 700 × 500 mm, with custom sizes subject to project review |
| Indicative worksurface load | Approximately 20–30 kg, subject to equipment distribution and approved configuration |
| Display compatibility | VESA 75 × 75 mm and 100 × 100 mm options |
| Indicative monitor range | 17–32 inches, subject to monitor weight, arm selection and stability review |
| Cable management | Internal or integrated routing provisions for power and data cables |
| Finish | Industrial powder coating with black, white or project-specific RAL colour options |
Ergonomics, Stability and Mobility
The workstation should place the display, laptop or input devices at a comfortable working height while maintaining a stable centre of gravity. Height adjustment is useful for shared workstations, but the selected lift mechanism must be matched to the total load. Castor diameter and material should reflect the flooring, thresholds and travel distance. Locking castors secure the cart during data entry or equipment use, while the low-profile base helps the cart approach beds, desks or work counters.
Device Integration and Cable Management
Before production, RIFE should receive the device model, display size, VESA pattern, computer or CPU dimensions, charger details, cable connections and required accessories. This information is used to review mounting, ventilation, cable slack, power distribution and access. A neat cable path is particularly important on an adjustable cart because cables must remain protected through the complete height and movement range.
Applications
- Clinical documentation with organised supplies
- Procedure or treatment support
- Hospital IT and equipment deployment
- Laboratory workstations
- Departmental mobile storage and computing
The listed applications are examples. Final suitability depends on equipment weight, infection-control or cleaning requirements, electrical requirements and the operating process at the installation site.
How to Specify the Correct Cart
- List every device and accessory that will be carried.
- Provide dimensions, weight, VESA pattern and cable connections.
- Confirm the required sitting and standing work heights.
- Describe the route, floor type, thresholds and lift access.
- Identify storage, locking, scanner, printer or power requirements.
- Confirm the quantity, delivery city and required project schedule.
Related Mobile Workstations
Request a Techno-Commercial Quotation
Request a quotation for the HSM-11. Share the intended application, equipment list, quantity, installation city and required accessories. RIFE can then review the cart as a complete workstation and recommend the appropriate height adjustment, mounting, storage, castors, cable management and power configuration.
Frequently Asked Questions
How many drawers are included?
The cabinet is configurable. Drawer quantity, sizes and internal organisation should be confirmed in the approved proposal.
Can the drawers be lockable?
Locking options can be discussed according to the items stored and access-control requirement.
Can it support a large monitor?
The existing specification references 17–32 inch VESA-mounted displays, subject to weight and stability review.
Is HSM-11 only for healthcare?
Healthcare is the primary application, but the multi-drawer workstation can also support laboratories, technical departments and other controlled professional environments.
