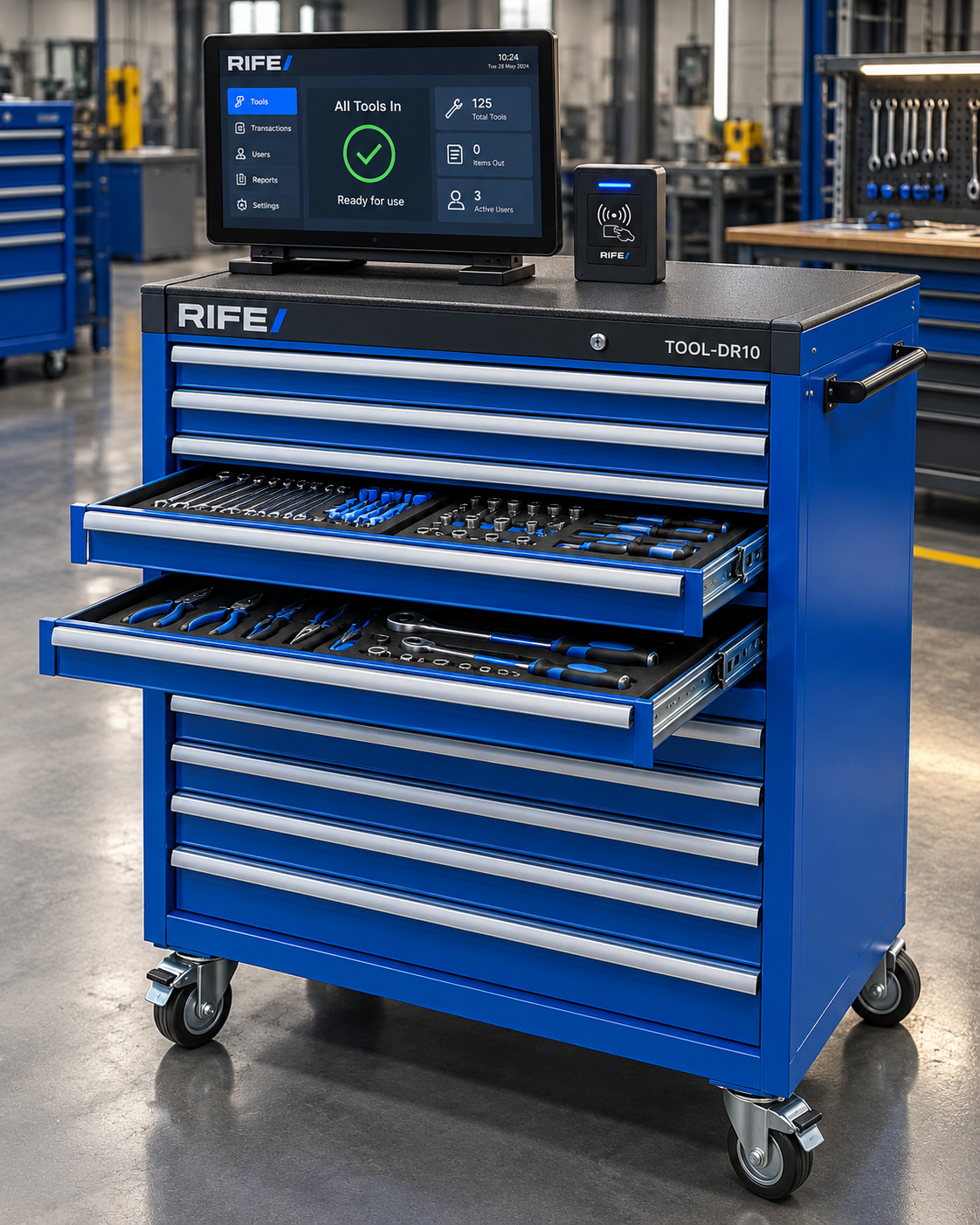

TOOL-DR10 Smart Industrial Tool Drawer Cabinet
Secure tool storage, employee access control and digital issue-return accountability for factories, workshops and maintenance departments.
See Technology in ActionWhatsApp Enquiry
RFID USER ACCESSDRAWER AUTHORIZEDTRANSACTION LOGGED
From tool search to accountable issue and return.
TOOL-DR10 combines controlled drawer access with employee identification, tool search and scan-based transactions. The standard concept uses RFID for employee authentication and barcode/QR scanning for individual tool identity.
User ID
Authenticate employee access by RFID card or optional PIN.
Tool Search
Locate a registered tool by name, code or category.
Drawer Control
Unlock only the authorised drawer for the selected tool.
Audit Trail
Record issue and return events against the user and optional work order.
Eight connected stages. One accountable transaction.
Tool-room hardware built around controlled access.
The proposed cabinet architecture combines ten heavy-duty drawers, electronic locking, touchscreen control and CNC-cut foam inserts for organised industrial tooling.
| Parameter | Proposed specification |
|---|---|
| Cabinet size | 950 W × 600 D × 1100 H mm, excluding top display |
| Construction | Cold-rolled powder-coated steel, reinforced welded frame |
| Drawers | 10 total; proposed 7 shallow + 3 deep, customizable |
| Drawer load | Target 35–50 kg per drawer, subject to testing |
| Slides | Heavy-duty full-extension telescopic ball-bearing slides |
| Tool organisation | Custom CNC-cut protective foam inserts |
| Mobility | Four industrial castors, minimum two braked; side handle |
Accountability beyond the physical cabinet.
Tool Registration
Maintain tool ID, category and assigned storage location.
Employee History
Track user-linked tool issue and return activity.
Work Orders
Associate issued tools with maintenance or production jobs.
Calibration
Provision for calibration due dates, inspection records and reminders.
Availability
Display which registered tools are available or currently issued.
Overdue Alerts
Notify responsible personnel about tools that have not been returned.
Damage Reporting
Flag damaged or unavailable tools in the management workflow.
User Permissions
Administrator, supervisor and operator access roles.
One cabinet platform. Multiple identification methods.
TOOL-DR10-B
Barcode Edition
Employee RFID access, electronic drawer locks, barcode/QR identification and digital issue-return reporting.
TOOL-DR10-R
RFID Edition
Proposed RFID-tagged tool identification using suitable readers and antennas, subject to successful testing inside steel drawers.
TOOL-DR10-S
Sensor Edition — Under Development
Future concept for individual tool-presence sensing without tags.
Designed for controlled tool environments.
Manufacturing & Machine Shops
Shared production and maintenance tooling with employee-level accountability.
Automotive & Aerospace
Structured issue-return workflows for service, maintenance and inspection tools.
Rail, Utilities & Factory Maintenance
Managed access for technicians working across industrial maintenance departments.
