RIFE TOOL-RF100 RFID Smart Tool Tracking Cabinet
Automated Tool Inventory | RFID Employee Access | Secure Industrial Tool Storage
Designed for factories, engineering workshops, automotive plants, aerospace maintenance and industrial tool rooms that need stronger control over high-value tools and equipment.
Proposed design — prototype and RFID validation pending
RFID USER ACCESSUHF TOOL SCANINVENTORY VERIFIED
Automatic inventory after authorised cabinet access.
UHF RFID identification
Designed to identify compatible RFID-tagged tools using a multi-antenna reader configuration.
Employee authentication
RFID employee card access with optional PIN and permission-based unlocking.
Tool accountability
Compare verified inventories before and after a user session to identify tool changes.
Digital records
Maintain employee-linked issue, return, overdue and availability records.
Six-step RFID issue and return workflow.

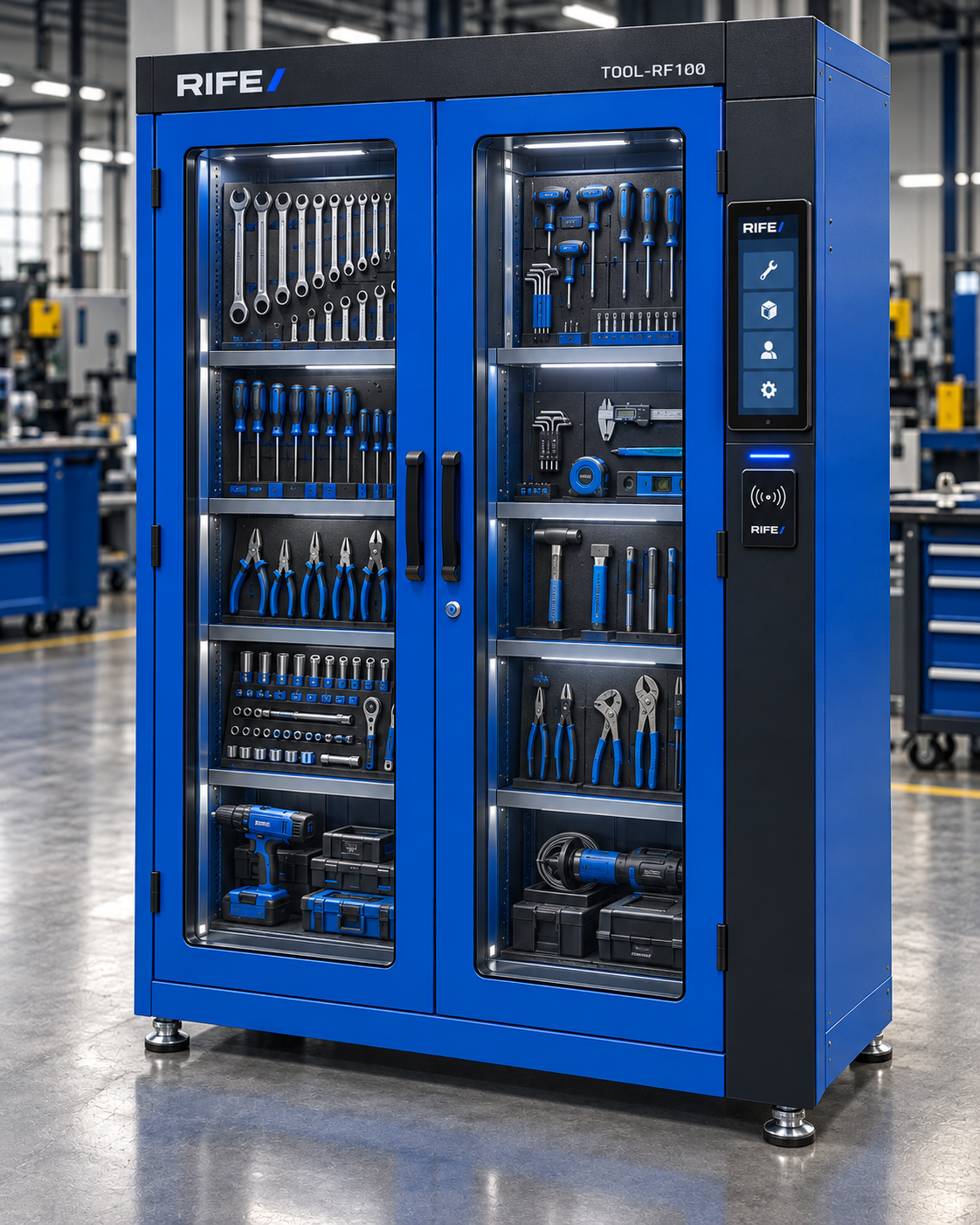

Industrial double-door RFID cabinet platform.
| Parameter | Proposed specification |
|---|---|
| Model | RIFE TOOL-RF100 |
| Product type | RFID Smart Tool Tracking Cabinet |
| Tool capacity | Target approximately 100 tools, configuration-dependent |
| Cabinet dimensions | Proposed 1200 W × 600 D × 1900 H mm |
| Construction | Powder-coated CRCA steel with reinforced transparent double doors |
| Internal storage | Adjustable shelves, holders and optional CNC-cut foam |
| Employee authentication | RFID card; optional PIN |
| Tool identification | UHF RFID with compatible on-metal tool tags |
| RFID reader | Industrial multi-antenna UHF reader |
| Touchscreen | Proposed 10.1-inch industrial display |
| Locking | Electronic controlled cabinet access |
| Connectivity | Ethernet; optional Wi-Fi |
| Software | RIFE Tool Management Software |
| Power | 230 V AC, 50 Hz proposed |
| Lighting | Integrated LED illumination |
| Installation | Indoor industrial environment |
Software functions for industrial tool control.
Availability
View which registered tools are available, issued or pending return.
Employee History
Maintain user-linked access and tool-movement records.
Overdue Monitoring
Flag tools that remain issued beyond the expected return window.
Calibration Records
Track inspection, service and calibration dates for controlled tools.
Damage Reporting
Record unavailable, damaged or quarantined tools.
Work Orders
Associate tool usage with maintenance or production jobs where configured.
Reports
Export inventory and transaction information for supervisors and audits.
Permissions
Support administrator, supervisor and operator access levels.
Configure around the tool mix and workflow.
RFID antenna zones
Additional or differently positioned antennas for validated storage zones.
Shelf layouts
Adjustable shelves, holders and cabinet arrangements for different tools.
Foam inserts
Optional custom tool-shaped CNC-cut foam for organised storage.
Tag selection
Tool-specific RFID tag choice based on size, material and mounting method.
Touchscreen options
Larger industrial display options for selected projects.
System integration
Employee access, work-order, calibration or other software integration by scope.
Network monitoring
Multiple-cabinet monitoring for larger sites where configured.
Dashboard
Consolidated cabinet and inventory views for supported deployments.
For high-value and accountable tool environments.
Automotive Manufacturing
Assembly tools, torque tools, maintenance equipment and inspection instruments.
Aerospace & Aviation MRO
Precision and safety-critical tools where item-level accountability matters.
Engineering & Manufacturing
High-value shared tools and equipment across production and maintenance teams.
Industrial Maintenance
Shared tools across technicians, shifts and work orders.
Precision Machine Shops
Cutting tools, measuring instruments and specialised engineering equipment.
Utilities & Infrastructure
Electrical maintenance tools, testing equipment and field-service kits.
