Ask about Transparent double side OLED digital signage

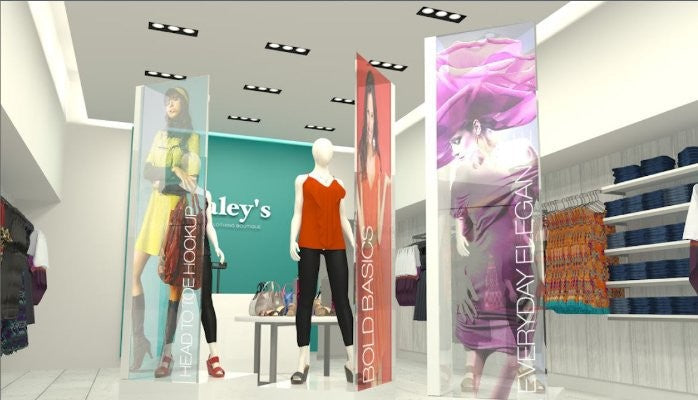

Transparent OLED Display is a self-emitting display that utilizes cutting-edge Organic Light Emitting Diode (OLED) technology to eliminate the need for a backlight or enclosure, making it possible to create truly see-through installations in a virtually frameless glass design. This will be the future of in-store retail POS digital signage as it will not block vital product site lines as is often experienced using traditional digital signage or static POS solutions. Touchscreen solutions are also available. With a 55" diagonal, the LookThru OLED features bright, vibrant colors greater than 100 percent (NTSC) performance, as well as wide viewing angles with no off-axis contrast or brightness limitations. The display provides Full HD resolution that allows for beautiful graphics and full-motion video. The OLED is available in two different mounting configurations with optional touch screen interactivity, offering 32 simultaneous touch points. It can be used in both portrait and landscape modes, table top or ceiling mount, and can be tiled to create large, eye-catching video wall arrays. Glass is optically bonded to the display to create a highly durable display and accommodate touchscreen usage for interactive applications. To further expand application capabilities, a range of accessories are available. The accessories include four tiling components that cater to multi-display tiling designs featuring flat or corner configurations.
Display: A Grade Screen, integrated backlight, E-LED backlight Display resolution: FHD 1080P 1920*1080 Display ratio: 16:9 Brightness: double-sided conventional 420cd/m2 (A side 700cd/m2 /B side 450cd/m2 can be customized) Viewing angle: 89/89/89/89(Min.)(CR≥10) Response time: 6ms (Gray To Gray) Brightness uniformity: ≧75% Color depth: 16.7M Main chip: Rockchip RK3288 CPU: Quad-core Cortex-A17, up to 1.8GHz GPU: Mali-T764 GPU, supports OpenGL ES, OpenCL, DirectX9.3 Running memory + storage capacity: 2GB DDR3 + 16GB eMMC Android version: Android 7.1 or above Application software: smart screen OS (optional) Input interface: USB HOST*2 Output interface: no Wi-Fi: 1 channel WIFI signal Network port: 1 RJ45 10M / 100M adaptive Ethernet port Bluetooth: no Power input: AC 100-240V~50/60Hz Speaker: Built-in two 8Ω/5W speakers Machine power consumption: 180W Max Standby power consumption:≦5W”
Frequently Asked Questions
1.What are the primary benefits of using a Transparent OLED display for retail?
Transparent OLED displays offer a significant advantage for in-store retail by providing a see-through digital signage solution that does not block vital product sight lines. Unlike traditional digital signage or static POS displays, the virtually frameless glass design allows customers to view physical products behind the screen while high-definition graphics and full-motion video play on the glass. Its self-emitting technology eliminates the need for a bulky backlight, ensuring a sleek, modern aesthetic.
2. Does the 55" LookThru OLED display support touchscreen interactivity?
Yes, the 55" LookThru OLED is available with optional touchscreen interactivity. It features a highly durable, optically bonded glass surface designed to withstand frequent use. The display supports 32 simultaneous touch points, making it ideal for interactive retail applications, wayfinding, or collaborative digital experiences.
3. What mounting configurations are available for Transparent OLED installations?
The Transparent OLED is highly versatile and supports multiple mounting configurations, including:
- Portrait and Landscape modes: Flexible orientation to fit any space.
- Tabletop or Ceiling mounts: Ideal for diverse architectural layouts.
- Tiled Video Walls: Multiple units can be tiled using specialized accessories to create large-scale, eye- catching video wall arrays in both flat and corner configurations.
4. What are the key technical specifications of the 55" Transparent OLED?
The 55" LookThru OLED features a Full HD (1080P) resolution with a 16:9 aspect ratio. It delivers vibrant color performance (greater than 100% NTSC) and wide viewing angles without loss of contrast. Internally, it is powered by a Rockchip RK3288 Quad-core CPU with 2GB DDR3 RAM and 16GB of storage, running on Android 7.1. It also includes built-in 5W speakers and an RJ45 Ethernet port for seamless connectivity.
5. Can the Transparent OLED display be customized for different brightness levels?
While the standard configuration offers a conventional brightness of 420cd/m2, the display can be customized to meet specific environment needs. The technology allows for adjustments such as a 700cd/m2 (A side) or 450cd/m2 (B side) configuration. This ensures the display remains visible and vibrant under various indoor lighting conditions while maintaining its see-through properties.
