24-Bay Laptop & Tablet Charging Locker (RL24): Buying Guide
A practical guide to selecting individual charging compartments for laptops, Chromebooks, iPads and tablets—covering capacity, locks, power, ventilation, device fit and administration.

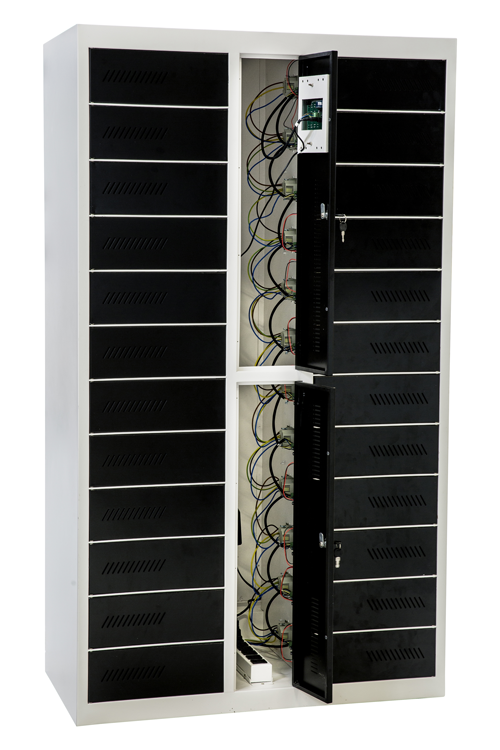

What the RIFE RL24 is designed to do
The RL24 provides up to 24 separately lockable compartments so users can leave compatible laptops, Chromebooks, tablets or iPads secured while charging. Each bay uses a user-set four-digit combination lock, and an administrator master key supports recovery when a code is forgotten.
The listed RL24 includes a power socket and two USB ports in each bay, ventilation and surge protection. Device dimensions, adaptor fit, plug type, electrical load and charging speed should be checked against the institution’s actual device fleet before ordering.
Related LS-Lab charging cabinets
The LS-Lab series provides individually powered and lockable doors for institutions that prefer assigned device positions. Key or number-lock options, device fit and the final charging configuration should be confirmed for each project.
LS-Lab20 — 20-Door Cabinet
A compact individual-door charging cabinet for classrooms, hospital units, training rooms and departments managing up to 20 compatible laptops or tablets.
View LS-Lab20
LS-Lab30 — 30-Door Cabinet
A higher-capacity option with 30 individual powered compartments for schools, colleges, libraries and workplace device programmes.
View LS-Lab30Need 40 doors? The LS-Lab40 can be discussed as a high-capacity project configuration. Confirm availability, dimensions, locking and electrical specifications directly with RIFE before specifying it.
RIFE charging-locker options
RL24 — 24-Bay Charging Locker
The primary match for universities, libraries, schools and offices that need higher-capacity individual device storage with user-set combination locks.
View RL24 Locker
RL10 — 10-Bay Charging Locker
A lower-capacity alternative for smaller teams, departments, libraries or classrooms that still need individually secured charging bays.
View RL10 LockerCombination-lock RL24 versus smart RFID lockers
The standard RL24 product page specifies individual four-digit combination locks and a master-key override. It does not describe centralized RFID badge authentication or automatic user-access logs as standard RL24 features. If the project requires campus cards, PIN terminals, QR access, software allocation or audit trails, request a separately configured RIFE smart charging locker and confirm credential compatibility in writing.
Eight procurement checks
1. Device dimensions
Measure the largest laptop or tablet with its protective case and allow space for plugs, cables and safe removal.
2. Charging method
Confirm whether each device uses its original AC adaptor, USB or a project-specific USB-C PD supply. Do not assume one USB output suits every device.
3. Electrical load
Add the rated or measured load of all devices and verify the facility circuit, socket, earthing, protection and installation requirements.
4. Lock administration
Define user instructions, code-reset or recovery procedures, master-key custody, lost-key control and responsibility for abandoned devices.
5. Ventilation
Review openings, cable placement, charger heat and room conditions. Keep vents clear and follow device-manufacturer charging limits.
6. Placement
Choose a stable, accessible location that does not obstruct corridors, fire exits or accessibility routes and has an appropriate power point.
7. Fleet workflow
Decide whether bays are self-service, permanently assigned, temporarily issued or managed by IT staff. The lock type must match the workflow.
8. Service and inspection
Plan regular checks of locks, doors, hinges, sockets, cables, ventilation and protective devices, with a clear fault-reporting process.
Combination locker and smart locker compared
| Evaluation point | RL24 combination-lock model | Configured smart charging locker |
|---|---|---|
| User access | User-set four-digit lock at each bay | PIN, RFID, QR, app or other configured credential |
| Administrator access | Master-key override | Software and physical override depend on the selected system |
| Access records | No centralized audit log stated on the standard listing | User and compartment events may be recorded when included in the project software |
| Charging | Per-bay power socket and USB ports as listed | AC, USB or USB-C configuration according to device and project |
| Best fit | Simple self-service charging without system integration | Shared-device programmes requiring assignment, identity and reporting |
| Related capacity options | RL10 for 10 bays; LS-Lab20/30 for individually powered doors | Capacity and access workflow configured to the project |
Deployment checklist
- Confirm the number, type, dimensions and cases of all devices.
- Test representative chargers, plugs and cables inside a sample bay.
- Calculate the maximum connected electrical load with a qualified facilities representative.
- Choose combination locks or a separately configured smart-access workflow.
- Document master-key custody and forgotten-code procedures.
- Check ventilation clearances and the intended room temperature.
- Label compartments and publish simple user instructions.
- Pilot the locker with real users before a larger campus rollout.
Frequently asked questions
How many devices can the RL24 store?
It provides 24 individually lockable charging bays. Device fit depends on the laptop or tablet dimensions, protective case and charging adaptor.
What charging connections are included?
The product listing describes a power socket and two USB ports in each compartment. Confirm plug type, USB output and compatibility with the exact device fleet before ordering.
What happens when a user forgets the combination?
An authorised administrator can use the supplied master key. The institution should control the key and document its recovery procedure.
Does the standard RL24 work with RFID student cards?
The standard RL24 listing specifies four-digit combination locks, not centralized RFID access. RFID badge integration requires a separately configured smart-locker system and compatibility confirmation.
How should electrical capacity be assessed?
Facilities staff should review the maximum combined load, branch circuit, socket, earthing, protection and installation against local requirements and the approved device chargers.
Confirm the right locker for your device fleet
Share the device count, dimensions, chargers, access workflow, location and required electrical configuration. RIFE can recommend the RL24, RL10 or a separately configured smart charging locker.
