Product SKU: R-IV-CAM-P12-B
The IV-CAM-P12 is a high quality PTZ camera that outputs up to 1080p60 resolution video. The IV‑CAM‑P12 is ideal for meetings in medium to large spaces where one camera needs to capture several areas of the room. The IV‑CAM‑P12 can be used with the IV‑SAM‑VXS‑1B Crestron 1 Beyond Automate VX as part of a complete multi-camera switching solution. The IV‑CAM‑P12 supports a single Ethernet connection and provides power (PoE), viewing, and control on a network.
Automate VX Compatible
The IV‑CAM‑P12 camera is compatible with Automate VX multi-camera speaker tracking systems. Use the IV‑CAM‑P12 for close up shots of active speaking participants in medium to large spaces.
High Quality Video
A high quality Sony® CMOS sensor enables the camera to output up to 1080p60 resolution video.
Networked Power, Viewing, and Control
Connect a single Ethernet cable to power (PoE), view, set up, and control the IV‑CAM‑P12 camera.
Mounting Options
Standard mounting holes make it easy to mount the camera. The IV‑CAM‑P12 ships with the color matched Universal Mounting Bracket, and is compatible with the Wall Mount Bracket and the J‑Mount Ceiling Bracket.
Key Features
- High quality video supporting resolutions up to 1080p60
- Compatible with Automate VX multi-camera systems
- Image flip allows for optional inverted mounting
- Single Ethernet connection provides power (PoE), viewing, control, and NDI®|HX video
- Easily configured with Crestron 1 Beyond Camera Manager software
- Available in Moon Gray
Specifications
| Optics and Processing | |
| Image Sensor: | 1/2.8 Sony® CMOS Sensor |
| Optical Zoom: | 12x |
| Focal Length: | F=4.1-49.2 mm |
| Field of View: | Horizontal: 67.68° |
| Shutter Speed: | 1/50-1/10,000 sec |
| Iris: | F1.8-F2.68 |
| Minimum Illumination: | 2 lux |
| Pan/Tilt Angle: | Pan: -130° — 130°, Tilt: -30° — 90° |
| Pan/Tilt Speed: | Pan: 0.2° — 90°/s, Tilt: 0.2° — 70°/s |
| Presets: | Up to 256 configurable presets |
| White Balance: | Auto, Indoor, One Push, Manual |
| Exposure: | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Video | |
| Video Outputs: | 3G-SDI, HDMI®, USB, NDI®|HX, ONVIF, RTSP, UVC |
| Signal Formats: | SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50 USB: 1080p30/25, 720p30/25, 360p30 |
| Communications | |
| USB: | USB-B 3.0 |
| Ethernet: | RJ-45, 100Mbps |
| Serial: | RS-232, RS-485 |
| Control Protocol: | VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF |

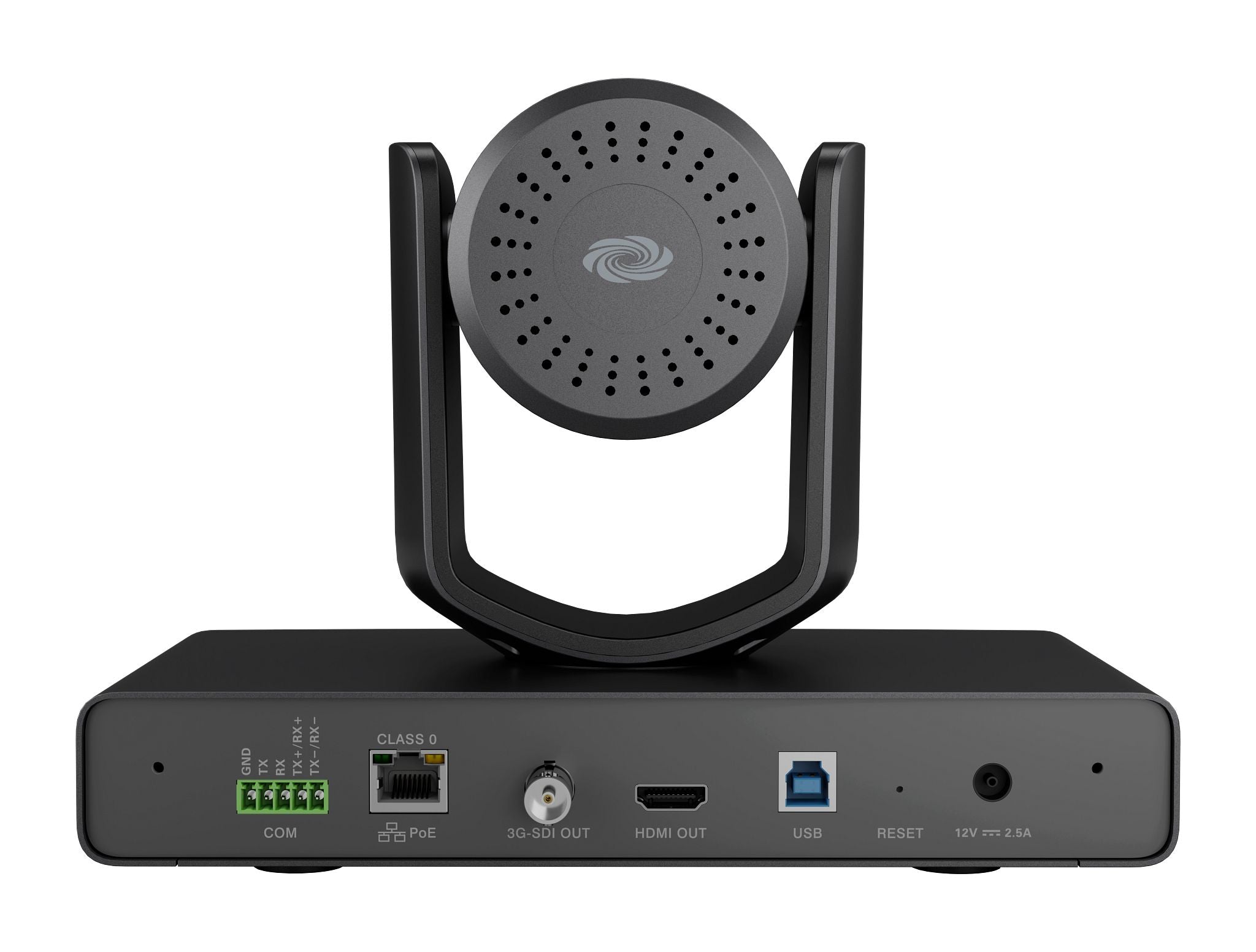

| COM: | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232/485 port |
| PoE: | (1) 8-pin RJ-45 connector, female |
| 3G-SDI OUT: | (1) BNC connector, female; 3G-SDI digital video output |
| HDMI OUT: | (1) HDMI Type A connector; HDMI digital video output |
| USB: | (1) USB Type B connector, female; USB 3.0 device port for video and control |
| 12VDC 2.5A: | (1) 3.3 mm DC power connector; 12VDC power input; power pack sold separately |
| Controls and Indicators | |
| Status Bar: | (1) Multisegment tricolor LED bargraph; Half green LED bargraph indicates live camera feed; Full amber LED bargraph indicates firmware upgrade; Half red LED bargraph indicates Privacy Mode |
| RESET: | (1) Recessed push button for hardware reset |
| Power | |
| Power Source Options: | Ethernet (PoE), Power Pack PW-1225DU |
| Power over Ethernet: | IEEE 802.3af Class 3 Powered Device |
| Power over Ethernet Rating: | 15.4 W NOTE: To comply with the European Directive (CE), shielded CAT5e cable must be used as a minimum for PoE power. |
| Power Pack (sold separately): | 12VDC, 2.5A, 50/60 Hz |
| Environmental | |
| Temperature: | 32° to 104°F (0° to 40°C) |
| Humidity: | 10% to 90% RH (noncondensing) |
| Construction | |
| Mounting Options: | 1 Beyond Universal Mounting Bracket (included), 1 Beyond Wall Mount Bracket (optional), 1 Beyond J‑Mount Bracket (optional) |
| Mounting Thread: | 1/4 in. threaded mount hole |
| Dimensions & Weight | |
| Height: | 6.55 in. (166 mm) |
| Width: | 8.89 in. (226 mm) |
| Depth: | 5.86 in. (149 mm) |
| Weight: | 4.12 lb (1.87 kg) |
